Centerless Grinding
PGI’s centerless grinding capabilities include both infeed and thru-feed grinding, allowing us to produce high-precision cylindrical parts with exceptional accuracy and surface finish.
This efficient process eliminates the need for a central holding mechanism, making it ideal for production at various volumes while maintaining tight tolerances.
Whether for complex geometries with infeed grinding or continuous processing with thru-feed grinding, PGI delivers superior quality and consistency across a wide range of industries.
Example Centerless Grinding Parts
A customer that makes food processing equipment supplies us with a powdered metal injection molded blank. We centerless grind the OD and face to bring to the final size.
A spool for the fluid controls industry. The part is swiss machined, heat treated, then centerless ground. Both diameters are ground in the same operation to ensure concentricity is controlled. The final diameter is ground to a .0002” total tolerance.
This industrial needle has multiple operations before being chrome plated and ground to final size. Afterwards, we swage the piston assembly on to the needle then package it in custom packaging.

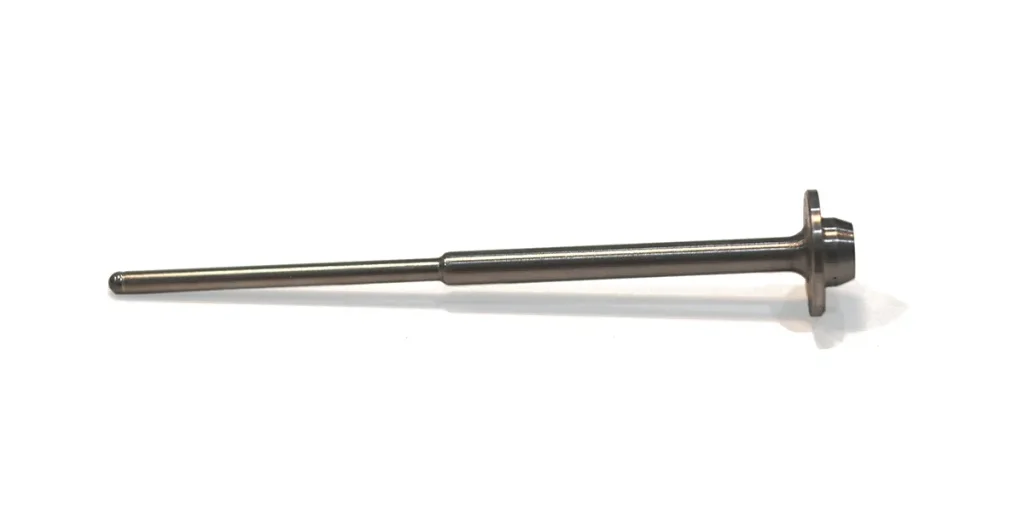

A key step in the production of this valve needle, PGI is able to centerless grind both small OD’s and the radii between them in a single operation. This ensures straightness and concentricity are held, which is critical for the subsequent grinding and brazing operations.
Specifications
- Length: up to 8″, approx.
- Diameter, OD: .062 – 4″, approx.
- Tolerance: +/- 0.0001″
- Finish: 4µ (microinch)
Materials
- Steels (all types)
- Aluminum
- Brass
- Bronze
- Tungsten
- Titanium
- Hastalloy
- Inconel
- Ruthenium
- Powdered Metals
- Plastics
Equipment List
- 3 #2 Cincinnati OM Diamond Roll, NC controlled
- 1 Cincinnati Cinco 15, NC controlled
- 1 Cincinnati OM Infeed/Thrufeed, NC controlled
- 1 #2 OM Cincinnati w/ Pneumatic Infeed
- 1 #3 Cincinnati Thrufeed
- 1 Royalmaster Thrufeed
- 3 Cincinnati Cinco 15 Infeed, NC controlled w/ CNC diamond dresser
Design for Manufacturability
Our experienced engineers can work with you to optimize your part designs for efficient production, minimizing costs and lead times. Contact us to see if your part can be optimized for manufacturability.
Quality Documentation
Comprehensive quality documentation we provide upon request:
